Fulcrum Suspension VW Amarok 4x4 Lift Kit


Buy in Store
Buy Online

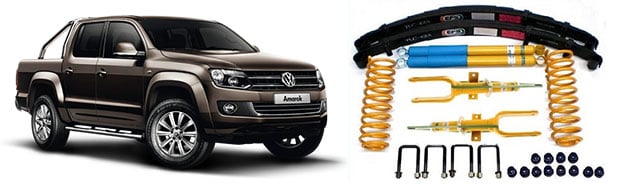

VW Amarok 4x4 Suspension Lift Kit Fitted



Are you looking to raise the height of your VW Amarok 4x4? Wanting to upgrade from standard suspension to a raised suspension package while staying within government regulations, if so this 50mm lift kit from Fulcrum Suspension is the solution you’re looking for.

General features

  • Raw nitro 4x4 or Bilstein shock absorbers
  • EFS raised rear leaf springs
  • Kings raised coil springs
  • SuperPro suspension rear bush kit
  • Rear greaseable pins
  • Rear swing shackles
  • Rear ubolts

4x4 kit options available

  • Enhancement kit - recreational 4x4 user
  • Performance kit - enthusiast 4x4 user
  • load kit - 4x4 user or tradesperson carrying constant weight
  • load kit steel bar and winch - 4x4 user carrying constant weight and with extra front accessories

Full catalogue below



Buy in Store
Buy Online




VW Amarok    2009-On
Description FRONT Qty Notes REAR Qty Notes
SHOCK ABSORBER
Bilstein  24-195690 2ea   24-195706 2ea
COIL SPRING
King Springs KVFR-22 1pr  Raised Height
KVFR-22T   Raised Tapered Wire Design
KVFR-22HD 1pr Raised Height Heavy Duty
LEAF SPRING
EFS       VW-01E 2ea 25mm Lift @ 250kg Constant Load
SHACKLE/ U BOLTS
U Bolts       C453-3 4ea
SUPERPRO  For individual bushes refer to the Super Pro Catalogue
Super Pro Shackle Bush Kit       KIT183K 1kt
AIR BAGS
Ride Rite Airbag Kit       RR4632 1kt
Important Note:  The Front Drive Shafts need to be removed to fit the front shock absorbers.  OEM Part No. N90625101 VW have designed these bolts to be for one use only and need to be replaced, then torqued to the following settings:  Outer CV  Bolt 150Nm + 180 Degrees   Inner CV Bolts 50Nm + 90 Degrees
FULCRUM 4X4 KITS Refer above on part quantities and specifications
Performance Kit AMAR-001 24-195690, 24-195706, KVFR-22, VW-01E, C453-3, KIT183K
